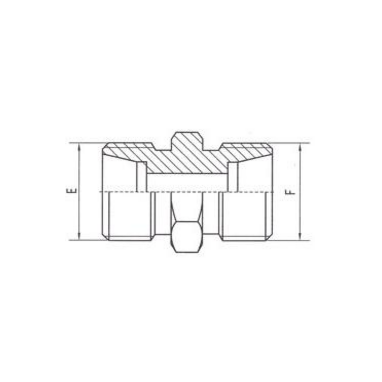

METRICKÉ - priame

spojka metrická - metrická

hydraulické šróbenie priame: metrické - metrické
kód. SÉRIA (rada) "L"E,F kód. SÉRIA (rada) "S"E,F
MCL-12M12X1,5MDS-14M14X1,5
MCL-14M14X1,5MDS-16M16X1,5
MCL-16M16X1,5MDS-18M18X1,5
MCL-18M18X1,5MDS-20M20X1,5
MCL-22M22X1,5MDS-22M22X1,5
MCL-26M26X1,5MDS-24M24X1,5
MCL-30M30X2MDS-30M30X2
MCL-36M36X2MDS-36M36X2
MCL-45M45X2MDS-42M42X2
MCL-52M52X2MDS-5252X2

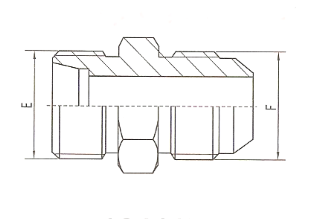

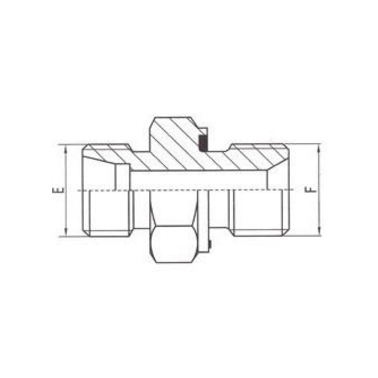

hrdlo, metrický-BSP, štvorhranné gumové tesnenie

hydraulické šróbenie pripojovacie: hrdlo oceľové, pripojovací závit BSP so štvorhranným gumeným tesnením /metricky závit,
kód. SÉRIA(rada)"L"EFkód. SÉRIA(rada)"S"EF
MCBLWD-12-02M12X1,5G1/8X28MCBLWD-14-04M14X1,5G1/4X19
MCBLWD-12-04M12X1,5G1/4X19MCBLWD-16-04M16X1,5G1/4X19
MCBLWD-14-04M14X1,5G1/4X19MCBLWD-18-04M18X1,5G1/4X19
MCBLWD-14-06M14X1,5G3/8X19MCBLWD-18-06M18X1,5G3/8X19
MCBLWD-14-08M14X1,5G1/2X14MCBLWD-20-06M20X1,5G3/8X19
MCBLWD-16-04M16X1,5G1/4X14MCBLWD-20-04M20X1,5G1/4X19
MCBLWD-16-06M16X1,5G3/8X14MCBLWD-22-06M22X1,5G3/8X19
MCBLWD-16-08M16X1,5G1/2X14MCBLWD-22-08M22X1,5G1/2X14
MCBLWD-18-06M18X1,5G3/8X14MCBLWD-24-06M24X1,5G3/8X19
MCBLWD-18-08M18X1,5G1/2X14MCBLWD-24-08M24X1,5G1/2X14
MCBLWD-22-06M22X1,5G3/8X14MCBLWD-24-12M24X1,5G3/4X14
MCBLWD-22-08M22X1,5G1/2X14
MCBLWD-22-12M22X1,5G3/4X14
MCBLWD-26-08M26X1,5G1/2X14
MCBLWD-26-12M26X1,5G3/4X14
MCBLWD-30-12M30X2G3/4X14
MCBLWD-30-16M30X2G1X11
MCBLWD-36-16M36X2G1X11
MCBLWD-45-20M45X2G1,1/4X11
MCBLWD-52-20M52X2G1,1/4X11
MCBLWD-52-24M52X2G1,1/2X11
MCBLWD-52-32M52X2G2/11

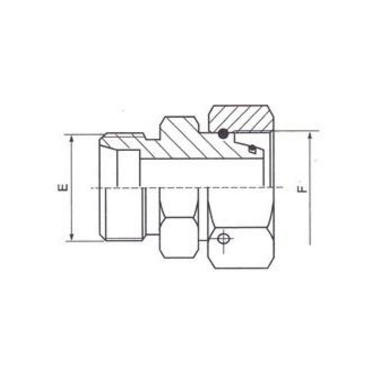

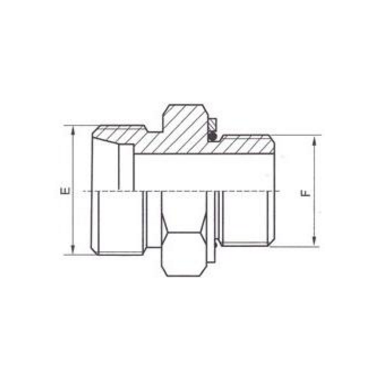

hrdlo, metrické - metrické, gumový O-krúžok s nastaviteľným prstencom

hydraulické šróbenie pripojovacie:oceľové hrdlo, prípojný závit metricky (F), rada "L",tesniaci gumený O-krúžok s nastavitelným prstencom ISO6149-G
kód.SÉRIA(rada)"L"EF
MCHL-12-10M12x1,5M10x1
MCHL-14M14x1,5M14x1,5
MCHL-14-12M14x1,5M12x1,5
MCHL-16-14M16x1,5M14x1,5
MCHL-18-14M18x1,5M14x1,5
MCHL-14-18M14x1,5M18x1,5
MCHL-16M16x1,5M16x1,5
MCHL-16-18M16x1,5M18x1,5
MCHL-18-16M18x1,5M16x1,5
MCHL-22-16M22x1,5M16x1,5
MCHL-22-18M22x1,5M18x1,5
MCHL-16-22M16x1,5M22x1,5
MCHL-22-20M22x1,5M20x1,5
MCHL-22M22x1,5M22x1,5
MCHL-26-22M26x1,5M22x1,5
MCHL-26M26x1,5M26x1,5
MCHL-26-27M26x1,5M27x2
MCHL-26-33M26x1,5M33x2
MCHL-30-22M30x2M22x1,5
MCHL-30-27M30x2M27x2
MCHL-30M30x2M30x2
MCHL-36-27M36x2M27x2
MCHL-36-33M36x2M33x2
MCHL-36-42M36x2M42x2
MCHL-45-33M45x2M33x2
MCHL-45-42M45x2M42x2
MCHL-48-52M52x2M48x2
rada "S"
kód.SÉRIA(rada)"S"EF
MDHS-14M14x1,5M14x1,5
MDHS-14-12M14x1,5M12x1,5
MDHS-16-14M16x1,5M14x1,5
MDHS-18-16M18x1,5M16x1,5
MDHS-20-14M20x1,5M14x1,5
MDHS-20-16M20x1,5M16x1,5
MDHS-20-18M20x1,5M18x1,5
MDHS-20-22M20x1,5M22x1,5
MDHS-24-22M24x1,5M22x1,5
MDHS-30M30x2M30x2
MDHS-27-30M30x2M27x2
MDHS-30-33M30x2M33x2
MDHS-36-27M36x2M27x2
MDHS-36-33M36x2M33x2
MDHS-42M42x2M42x2
MDHS-42-48M42x2M48x2

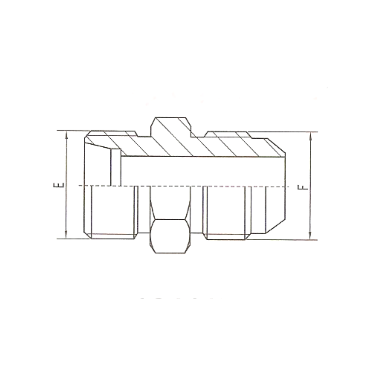

spojka, metrická - JIC, kužeľové tesnenie

hydraulické šróbenie pripojovacie hrdlo, pripojovací závit UNF , JIC 74° - metrický rada"L"
kód.SÉRIA(rada)"L"EF
MCJL-12-04M12x1,57/16
MCJL-14-04M14x1,57/16
MCJL-14-06M14x1,59/16
MCJL-16-06M16x1,59/16
MCJL-18-06M18x1,59/16
MCJL-18-08M18x1,53/4
MCJL-22-08M22x1,53/4
MCJL-22-10M22x1,57/8
MCJL-26-10M26x1,57/8
MCJL-26-12M26x1,51.1/16
MCJL-30-12M30x21.1/16
MCJL-36-16M36x21.5/16
MCJL-45-20M45x21.5/8
MCJL-52-20M52x21.5/8
MCJL-52-24M52x21.7/8
rada "S"
kód.SÉRIA(reada)"S"EF
MDJS-14-04M14x1,57/16
MDJS-16-04M16x1,57/16
MDJS-16-06M16x1,59/16
MDJS-18-04M18x1,57/16
MDJS-18-06M18x1,59/16
MDJS-20-06M20x1,59/16
MDJS-20-08M20x1,53/4
MDJS-22-08M22x1,53/4
MDJS-24-08M24x1,53/4
MDJS-24-10M24x1,57/8
MDJS-30-12M30x21.1/16
MDJS-36-12M36x21.1/16
MDJS-36-16M36x21.5/16
MDJS-42-20M42x21.5/8
MDJS-42-20M42x21.7/8

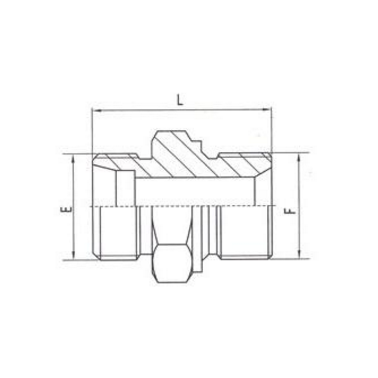

hrdlo, metrické - metrické, tesniaca hrana, kov - kov

hydraulické šróbenie pripojovacie: hrdlo oceľové, tesnenie kovové , metrické - metrické, rada "L"DIN 3852-B
kód.SÉRIA (rada) "L"EF
MCML-10-12M12x1,5M10x1
MCML--14-12M14x1,5M12x1,5
MCML--14-18M14x1,5M18x1,5
MCML--16-14M16x1,5M14x1,5
MCML--16M16x1,5M16x1,5
MCML--16-18M16x1,5M18x1,5
MCML--16-22M16x1,5M22x1,5
MCML-18-14M18x1,5M14x1,5
MCML--18-16M18x1,5M16x1,5
MCML--18M18x1,5M18x1,5
MCML-18-22M18x1,5M22x1,5
MCML--22-16M22x1,5M16x1,5
MCML--22-18M22x1,5M18x1,5
MCLM-22M22x1,5M22x1,5
MCML--26-18M26x1,5M18x1,5
MCML--26-22M26x1,5M22x1,5
MCML--30-22M30x2M22x1,5
MCML--30-26M30x2M26x1,5
MCML--30-27M30x2M27x1,5
MCML--36-33M36x2M33x2
MCML--45-42M45x2M42x2
MCML-52-48M52x2M48x2
rada "S"
kód.SÉRIA (rada) "S"EF
MDMS-14-12M14x1,5M12x1,5
MDMS-16-14M16x1,5M14x1,5
MDMS-18-16M18x1,5M16x1,5
MDMS-20-18M20x1,5M18x1,5
MDMS-20-22M20x1,5M22x1,5
MDMS-22-20M22x1,5M20x1,5
MDMS-24-18M24x1,5M18x1,5
MDMS-24-22M24x1,5M22x1,5
MDMS-30-27M30x2M27x2
MDMS-36-33M36x2M33x2
MDMS-42M42x2M42x2
MDMS-52-48M52x2M48x2

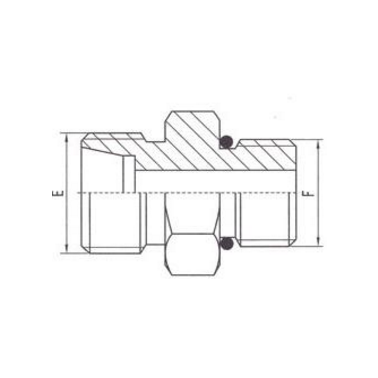

hrdlo,metrické - metrické,tesnenie štvorhranné gumené tesnenie

hydraulické šróbenie: hrdlo oceľové, tesnenie štvorhrana guma, metrické-metrické, rada "L" DIN 3852-E
kód.SÉRIA(rada)"L" EF
MCMLW-12-10M12x1,5M10x1
MCMLW-14-12 M14x1,5M12x1,5
MCMLW-16-12M16x1,5M12x1,5
MCMLW-16-14 M16x1,5M14x1,5
MCMLW-16-11M16x1,5M18x1,5
MCMLW-18-16 M18x1,5M16x1,5
MCMLW-18 M18x1,5M18x1,5
MCMLW-18-22 M18x1,5M22x1,5
MCMLW-22-18 M22x1,5M18x1,5
MCMLW-22 M22x1,5M22x1,5
MCMLW-26-22M26x1,5M22x1,5
MCMLW-30-26 M30x2M26x1,5
MCMLW-30-27 M30x2M27x1,5
MCMLW-36-33M36x2M33x2
MCMLW-45-42 M45x2M42x2
MCMLW-52-48M52x2M48x2
rada "S"
kód.SÉRIA(rada)"L"EF
MDMSW-12-14 WDM14x1,5M12x1,5
MDMSW-14-16 WDM16x1,5M14x1,5
MDMSW-16-18 WDM18x1,5M16x1,5
MDMSW-18-20 WDM20x1,5M18x1,5
MDMSW-20-22 WDM22x1,5M20x1,5
MDMSW-22-24 WDM24x1,5M22x1,5
MDMSW-27-30 WDM30x2M27x2
MDMSW33-36 WDM36x2M33x2
MDMSW-42 WDM42x2M42x2
MDMSW-52 WDM52x2M52x2

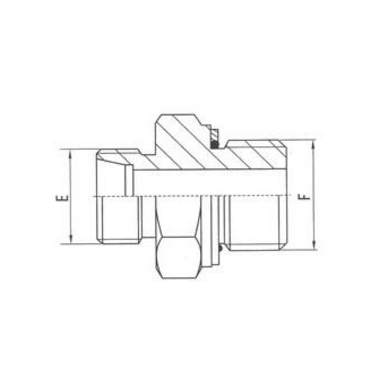

hrdlo, metrické - JIC, tesniaci gumový O-krúžok

hydraulické šróbenie: hrdlo oceľové, tesnenie gumový O-krúžok, metrické-JIC (UNF), rada "L" ISO 11926
kód.SÉRIA(rada)"L" EF
MCOL-14-04M14x1,57/16X20
MCOL-16-04M16x1,57/16X20
MCOL-18-06M18x1,59/16X18
MCOL-18-08M18x1,53/4X16
MCOL-18-10M18x1,57/8X14
MCOL-22-08M22x1,53/4X16
MCOL-22-10M22x1,57/8X14
MCOL-22-12M22x1,51.1/16X12
MCOL-26-08M26x1,53/4X14
MCOL-26-10M26x1,57/8X14
MCOL-30-08M30x23/4X16
MCOL-30-10M30x27/8X14
MCOL-30-12M30x21.1/16X12
MCOL-30-16M30x21.5/16X12
MCOL-36-12M36x21.1/16X12
MCOL-36-12M36x21.5/16X12
MCOL-45-12M45x21.5/16X12
MCOL-45-20M45x21.5/8X12
MCOL-52-20M52x21.5/8X12
rada"S"
kód.SÉRIA(rada)"S"EF
MDOS-16-04M16x1,57/16X20
MDOS-18-06M18x1,59/16X18
MDOS-20-06M20x1,59/16X18
MDOS-20-08M20x1,53/4X16
MDOS-24-08M24x1,53/4X16
MDOS-24-10M24x1,57/8X14
MDOS-30-08M30x23/4X16
MDOS-30-10M30x27/8X14
MDOS-30-12M30x21.1/16X12
MDOS-36-12M36x21.1/16X12
MDOS-36-16M36x21.5/16X12
MDOS-42-16M42x21.5/16X12
MDOS-42-20M42x21.5/8X12
MDOS-52-20M52x21.5/8X12

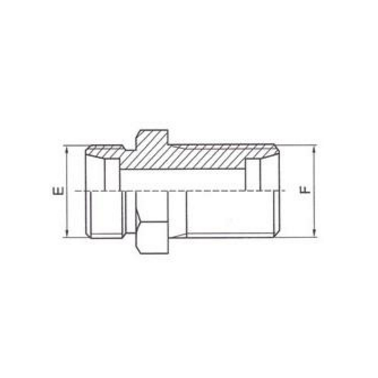

hrdlo,metrické - BSP, tesnenie na závite

hydraulické šróbenie: hrdlo oceľové, tesnenie na závite(kónické), metrické-BSPT, rada "L" DIN 3852 ANSI / ASME
kód SÉRIA(rada)"L"EF
MCTLSP-12-02M12x1,5R1/8
MCTLSP-12-04 M12x1,5R1/4
MCTLSP-14-04 M14x1,5R1/4
MCTLSP-14-06M14x1,5R3/8
MCTLSP-16-04M16x1,5R1/4
MCTLSP-16-06M16x1,5R3/8
MCTLSP-16-08 M16x1,5R1/2
MCTLSP-16-12 M16x1,5R3/4
MCTLSP-18-04 M18x1,5R1/4
MCTLSP-18-06M18x1,5R3/8
MCTLSP-18-08 M18x1,5R1/2
MCTLSP-22-08 M22x1,5R1/2
MCTLSP-26-08M26x1,5R1/2
MCTLSP-26-12M26x1,5R3/4
MCTLSP-30-12 M30x2R3/4
MCTLSP-36-16 M36x2R1
MCTLSP-36-20 M36x2R1.1/4
MCTLSP-45-16 M45x2R1
MCTLSP-45-20 M45x2R1.1/4
MCTLSP-52-20 M52x2R1.1/4
MCTLSP-52-20 M52x2R1.1/2
rada "S"
kód SÉRIA(rada)"S"EF
MDTSSP-14-04 M14x1,5R1/4
MDTSSP-16-04 M16x1,5R1/4
MDTSSP-18-04 M18x1,5R1/4
MDTSSP-20-04 M20x1,5R1/4
MDTSSP-20-06 M20x1,5R3/8
MDTSSP-22-06M22x1,5R3/8
MDTSSP-22-08 M22x1,5R1/2
MDTSSP-24-06 M24x1,5R3/8
MDTSSP-24-08 M24x1,5R1/2
MDTSSP-30-12M30x2R3/4
MDTSSP-36-12 M36x2R3/4
MDTSSP-36-16 M36x2R1
MDTSSP-42-16 M42x2R1
MDTSSP-42-20 M42x2R1.1/4
MDTSSP-52-20 M52x2R1.1/4
MDTSSP-52-24 M52x2R1.1/2

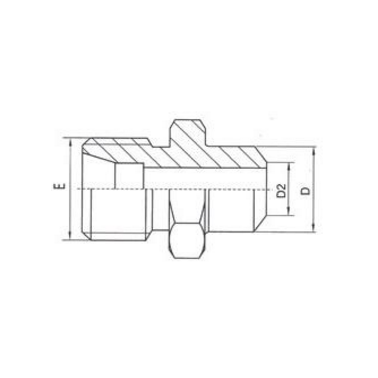

hrdlo, metrické - zvar

hydraulické šróbenie: hrdlo oceľové,prípojka privarovacia, metrické-zvar, rada "L"
kód,SÉRIA(rada)"L" ED2D
MCWL-12-06M12x1,5610
MCWL-14-08M14x1,5812
MCWL-16-10M16x1,51014
MCWL-18-12M18x1,51216
MCWL-22-15M22x1,51519
MCWL26-18M26x1,51822
MCWL-26-22M26x1,51827
MCWL-30-22M30x22227
MCWL-30-25M30x22231
MCWL-36-28M36x22832
MCWL-45-35M45x23540
MCWL52-42M52x24246
rada"S"
kód,SÉRIA(rada)"S"ED2D
MDWS-14-06M14x1,5611
MDWS-16-08M16x1,5813
MDWS-18-10M18x1,51015
MDWS-20-10M20x1,51217
MDWS-22-14M22x1,51419
MDWS-24-16M24x1,51621
MDWS-30-20M30x22026
MDWS-36-25M36x22531
MDWS-42-30M42x23036
MDWS-52-38M52x23844

priama prepážková spojka DIN 2353

hydraulické šróbenie :spojka prepážková metricka DIN 2353 rada"L"
kód.(SÉRIA) rada"L"E-F
M6CL-12M12x1,5
M6CL-14M14x1,5
M6CL-16M16x1,5
M6CL-18M18x1,5
M6CL-22M22x1,5
M6CL-26M26x1,5
M6CL-30M30x2
M6CL-36M36x2
M6CL-45M45x2
M6CL-52M52x2
rada "S"
kód.(SÉRIA) rada"S"E-F
M6DS-14M14x1,5
M6DS-16M16x1,5
M6DS-18M18x1,5
M6DS-20M20x1,5
M6DS-22M22x1,5
M6DS-24M24x1,5
M6DS-30M30x2
M6DS-36M 36x2
M6DS-42M42x2
M6DS-52M52x2

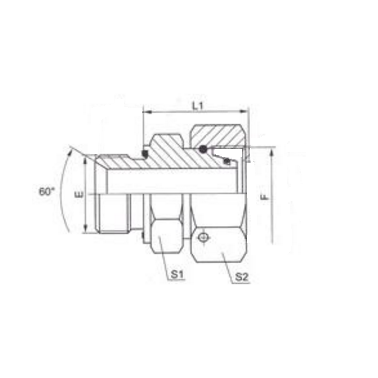

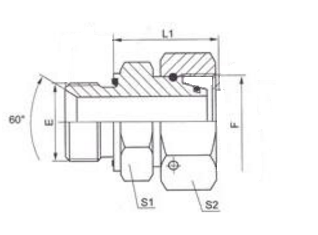

spojka redukčná,metrická DIN 2353 s prevlečnou maticou

hydraulické šróbenie :spojka redukčná,metrická DIN 2353, rada "L"
kód.(SÉRIA)rada"L" E F
M2CL-12-14M12x1,5M14x1,5
M2CL12-16M12x1,5M16x1,5
M2CL-14-16M14x1,5M16x1,5
M2CL-12-18M12x1,5M18x1,5
M2CL-14-18M14x1,5M18x1,5
M2CL16-18M16x1,5M18x1,5
M2CL-12-22M12x1,5M22x1,5
M2CL14-22M14x1,5M22x1,5
M2CL-16-22M16x1,5M22x1,5
M2CL-18-22M18x1,5M22x1,5
M2CL-12-26M12x1,5M26x1,5
M2CL14-26M14x1,5M26x1,5
M2CL-16-26M16x1,5M26x1,5
M2CL18-26M18x1,5M26x1,5
M2CL-22-26M22x1,5M26x1,5
M2CL-12-30M12x1,5M30x2
M2CL-14-30M14x1,5M30x2
M2CL16-30M16x1,5M30x2
M2CL-18-30M18x1,5M30x2
M2CL-22-30M22x1,5M30x2
M2CL-26-30M26x1,5M30x2
M2CL-12-36M12x1,5M36x2
M2CL-14-36M14x1,5M36x2
M2CL-16-36M16x1,5M36x2
M2CL-18-36M18x1,5M36x2
M2CL-22-36M22x1,5M36x2
M2CL26-36M26x1,5M36x2
M2CL-30-36M30x2M36x2
M2CL-12-45M12x1,5M45x2
M2CL-14-45M14x1,5M45x2
M2CL-16-45M16x1,5M45x2
M2CL-18-45M18x1,5M45x2
M2CL-22-45M22x1,5M45x2
M2CL-26-45M22x1,5M45x2
M2CL-30-45M30x2M45x2
M2CL-36-45M36x2M45x2
M2CL-12-52M12x1,5M52x2
M2CL-14-52M14x1,5M52x2
M2CL-16-52M16x1,5M52x2
M2CL-18-52M18x1,5M52x2
M2CL-22-52M22x1,5M52x2
M2CL-26-52M26x1,5M52x2
M2CL-30-52M30x2M52x2
M2CL-36-52M36x2M52x2
M2CL-45-52M45x2M52x2
rada "S"
kód.(SÉRIA) rada "S"E F
M2DS-14-16M14x1,5M16x1,5
M2DS-14-18M14x1,5M18x1,5
M2DS-14-20M14x1,5M20x1,5
M2DS-14-22M14x1,5M22x1,5
M2DS-16-18M16x1,5M18x1,5
M2DS-16-20M16x1,5M20x1,5
M2DS-16-22M16x1,5M22x1,5
M2DS-18-20M18x1,5M20x1,5
M2DS-18-22M18x1,5M22x1,5
M2DS-20-22M20x1,5M22x1,5
M2DS-14-24M14x1,5M24x1,5
M2DS-14-30M14x1,5M30x2
M2DS-14-36M14x1,5M36x2
M2DS-14-42M14x1,5M42x2
M2DS-16-24M16x1,5M24x1,5
M2DS-16-30M16x1,5M30x2
M2DS-16-36M16x1,5M36x2
M2DS-16-42M16x1,5M42x2
M2DS-18-24M18x1,5M24x1,5
M2DS-18-30M18x1,5M30x2
M2DS-18-36M18x1,5M36x2
M2DS-18-42M18x1,5M42x2
M2DS-20-24M20x1,5M24x1,5
M2DS-20-30M20x1,5M30x2
M2DS-20-36M20x1,5M36x2
M2DS-20-42M20x1,5M42x2
M2DS-22-24M22x1,5M24x1,5
M2DS-22-30M22x1,5M30x2
M2DS-22-36M22x1,5M36x2
M2DS-22-42M22x1,5M42x2
M2DS-24-30M24x1,5M30x2
M2DS-24-36M24x1,5M36x2
M2DS-24-42M24x1,5M42x2
M2DS-30-36M30x2M36x2
M2DS-30-42M30x2M42x2
M2DS-36-42M36x2M42x2
M2DS-14-52M14x1,5M52x2
M2DS-16-52M16x1,5M52x2
M2DS-18-52M18x1,5M52x2
M2DS-20-52M20x1,5M52x2
M2DS-22-52M22x1,5M52x2
M2DS-24-52M24x1,5M52x2
M2DS-30-52M30x2M52x2
M2DS-36-52M36x2M52x2
M2DS-42-52M42x2M52x2

spojka metricka s prevlečnou maticou DIN 2353

hydraulické šróbenie :spojka ,metrická, tesnenie O-krúžok DIN 2353, rada "L"
kód.SÉRIA(rada)"L"E,FD1,D2L1L2S1, S2
M3CL-12M12x1,56333214
M3CL-14M14x1,58333217
M3CL-16M16x1,510343319
M3CL-18M18x1,512343322
M3CL-22M22x1,515393827
M3CL-26M26x1,518413932
M3CL-30M30x222444236
M3CL-36M36x228484646
M3CL-45M45x235524850
M3CL-52M52x242575260
rada"S"
kód.SÉRIA(rada)"L"E,FD1,D2L1L2S1,S2
M3DS-14M14x1,56333217
M3DS-16M16x1,58343319
M3DS-18M18x1,510353322
M3DS-20M20x1,512383624
M3DS-22M22x1,514413927
M3DS-24M24x1,516423930
M3DS-30M30x220484436
M3DS-36M36x225534646
M3DS-42M42x230625250
M3DS-52M52x238675260

priama nastaviteľná spojka metrická tesnenie O-krúžok, DIN 3852-E

hydraulické šróbenie :spojka metrická,priama nastaviteľná metrický valcový závit, tesnenie O-krúžok DIN 3852-E, rada"L"
kód. SÉRIA(rada)"L"E FL1S1S2
M2MCLWD-10-12 M10x1M12x1,524,51414
M2MCLWD-12-14M12x1,5M14x1,526,51717
M2MCLWD-14-16M14x1,5M16x1,527,51919
M2MCLWD-16-18 M16x1,5M18x1,530,52222
M2MCLWD-18-22 M18x1,5M22x1,531,52427
M2MCLWD-22-26 M22x1,5M26x1,531,52732
M2MCLWD-26-30 M26x1,5M30x232,53236
M2MCLWD-33-36 M33x2M36x2354141
M2MCLWD-42-45 M42x2M45x242,55050
M2MCLWD-48-52 M48x2M52x246,55560
rada"S"
kód. SÉRIA(rada)"S"EFL1S1S2
M2MDSWD-12-14M12x1,5M14x1,5271717
M2MDSWD-14-16 M14x1,5M16x1,529,51919
M2MDSWD-16-18 M16x1,5M18x1,5322222
M2MDSWD-18-20 M18x1,5M20x1,5342424
M2MDSWD-20-22 M20x1,5M22x1,536,52727
M2MDSWD-22-24 M22x1,5M24x1,5372730
M2MDSWD-27-30 M27x2M30x2433236
M2MDSWD-33-36 M33x2M36x2484146
M2MDSWD-42-48 M42x2M46x2515050
M2MDSWD-48-52 M48x2M52x2605560

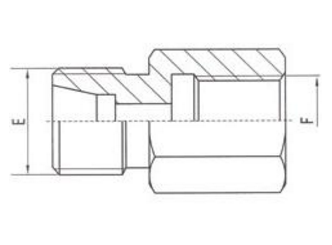

maticová prípojka, vnútorný metrický závit

maticová prípojka, vnútorný metrický závit rada"L"
kód. SÉRIA (RADA) "L" E F
M5CML-12-10M12x1,5M10x1
M5CML-14-12M14x1,5M12x1,5
M5CML-16-14M16x1,5M14x1,5
M5CML18-16M18x1,5M16x1,5
M5CML-22-18M22x1,5M18x1,5
M5CML-26-22M26x1,5M22x1,5
M5CML-30-26M30x2M26x1,5
M5CML-36-33M36x2M33x2
M5CML-45-42M45x2M42x2
M5CML-52-48M52x2M48x2
rada "S"
kód. SÉRIA (RADA) "S"EF
M5DMS-14-12M14x1,5M12x1,5
M5DMS-16-14M16x1,5M14x1,5
M5DMS-18-16M18x1,5M16x1,5
M5DMS-20-18M20x1,5M18x1,5
M5DMS-22-20M22x1,5M20x1,5
M5DMS-24-22M24x1,5M22x1,7
M5DMS-30-27M30x2M27x1,5
M5DMS-36-33M36x2M33x2
M5DMS-42M42x2M42x2
M5DMS-52-48M52x2M48x2
